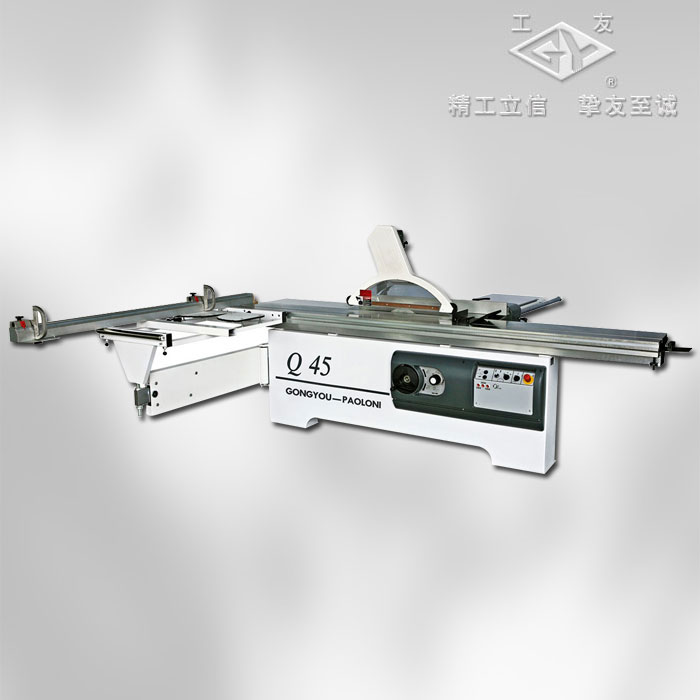

| Technical Specification | Unit | Q45 |
| Max.sawing length | mm | 3200 |
| Max.sawing thickness | mm | 110 |
| Main saw motor power | kW | 4 |
| Main saw motor lifting power | W | 70 |
|
Main spindle speed |
r/min |
3000/3600/4200 |
| Main spindle dia. | mm | ?30 |
| Main saw blade dia. | mm | ?300-?400 |
| Max.sawblade tilt angle |
45° |
|
| Scoring saw motor | kW | 0.75 |
| Scoring spindle dia. | mm | ?20 |
| Scoring sawblade dia. | mm | ?125 |
| Scoring spindle speed | r/min | 7600 |
| Overall dimensions | mm | 3400×3360×1475 |
| Net.weight | kg | 940 |
